Balotiya House
by Devesh Turakane
The household members faced the insufficient space to live, single mori created disputes and no proper light ventilation in the house. They wanted a mori on all floors which has been adopted in the design. Additionally, the
existing stairs took a lot of space, wherein now a spiral staircase takes minimum amount of space. On the floors above, sliding door helps in adjusting the space for living and sleeping. The gas stoves now have been
placed near the windows for the hot fumes to move out directly.
House Plans
Ground Floor Plan
0 1 2 4 6m
First Floor Plan
0 1 2 4 6m
Second Floor Plan
0 1 2 4 6m
House Section
The sections shows how a light shaft is created using staircases and how the show allows some light to come
in while having an opening to left the hot air out. Spiral staircase is used for vertical mobility to respond to the
space constraint.
Section A-A'
0 1 2 4 6m
Section B-B'
0 1 2 4 6m

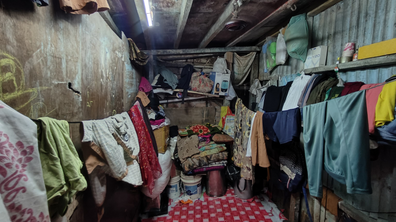

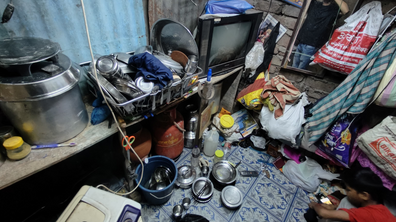

Sanitation Conditions
Structural Details
The floor height have been increased to 2.8m and the existing flooring of wooden planks supported by wooden members has been changed to steel I-beams as columns and beams. The flooring comprises of steel deck and PCC. 2 bison boards with additional storage spaces cover the front
facade with a support of steel box sections. Sloping asbestos sheet and translucent GI sheet make the roof. Steel spiral staircase and lighy shaft
help to get in light from th top, the light shaft being covered with 10mm thick steel wires.
3d View
